Båden og udstyr

•            Overall length   :               11,72 m                           •            Empty displacement   :      6,980 kg

•            Hull length  :                     11,36 m                           •            Water tank capacity   :       320 - 440 l

•            Waterline length   :           9,84 m                             •            Fuel tank capacity   :         160 l

•            Max. beam   :                    3,93 m                              •            Holding tank:                    40l

•            Draft   :                            1,76 m                              •            Engine   : 20.9KW             29 hp

•            Mainsail :                         31,5 m2                           •            Furling genoa :                  42,6 m2

•            Service battery :                100 Ah                               •            Certification CE   :             categorie A

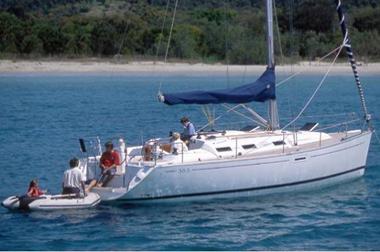

Dufour 385 Grand Large

Technical Standard Specifications:



Drømmen

Sidste nyt

Om os

Ruten

Båden og udstyr

Rejsebreve

Fiskeri

Kontakt os

S/Y NAVIGO  ***  CARIBIENSTUR 2009-10



· 28 m2 small genoa on removable inner forestay

· 12 m2 jib on removable inner forestay

· 6 m2 storm jib on removable inner forestay

· 95 m2 Lee Sails Standard size gennaker with snuffer on Selden Bowsprit







Additional Sails:



· Additional 600 Ah service bank - AGM batteries. Original service bank is 210 Ah.

· Victron BMV-600 battery monitors for both battery service banks

· 60A/12V Victron Centaur charger (from 220V) - for 600 Ah service bank only

· 150A Balmar generator with multistep regulator MC-612-H on engine - for 600 Ah service bank only

· 2000W Honda EU20i portable silent petrol generator for onboard generation of 220V  (input for chargers)

· Studer Inverter AJ1000S (12V to 220V)







Additional Power Installed:



· Raymarine ST60+ Wind speed and direction

· Raymarine ST60+ Tridata (speed, depth and water temperature)

· Garmin 4012 chartplotter

· Garmin GMR18 4kW radar on selfleveling custom bracket (connected to 4012 chartplotter)

· Garmin digital sounder module GSD22 (connected to 4012 chartplotter)

· Backup chartplotter on PC

· Digital Yacht AIT250 AIS transponder (class B)

· Mcmurdo NAV6 PLUS Navtex

· Vion A4000.2 electronic marine barometer











Instrumentation:



· Lalizas life raft for 6 persons

· Mcmurdo Smartfind G5 406 MHz GPS EPIRB

· GME MT410G Accusat 406 MHz GPS PLB EPIRB with strobe light (2 off) - When on watch carry one!

· ACR Pathfinder 9 GHz SART

· Echomax 230 passive radar reflector

· Sea-Me active radar reflector with optional alarm in case we are ”hit” by another ships radar







Safety:



· Raymarine ST8002+ and S1G corepack. Custombuilt with Jefa rotary drive

· Hydrovane windvane model VXA2D L with two H brackets on custom framing. Also serves as spare rudder .







Autopoilot and selfsteering:



· ICOM IC-M505 fixed DSC VHF radio

· ICOM IC-M33 floating waterproof handheld VHF radio

· ICOM IC-R1500 SSB Receiver (receiver only!)

· Iridium Satellite telephone, Motorola 9505A

· Senao EOC 3220EXT Long Range Outdoor Wi-Fi Access Point with high gain external antenna







Communication:



· Watermaker, +100l/h, homemade based on CAT 247 pump and 2 Filmtec SW30-2540 reverse osmosis membranes

· Eberspächer D5 marine heater routed to all rooms

· Para Anchor Bass Strait 18

· Lalizas heavy duty drogue

· Zodiac Cadet 285 S dinghy with 3.5 hp Mercury outboard engine

· Rule 1100 bilge pump and Rule bilge alarm

· Homemade bimini and awning







Other equipment:



· 27 kg CQR main anchor on 70 m of 10mm chain

· 16 kg Delta anchor









Ground tackle:
